Audio Recorders

Phone
301-754-2871

ZFR100_topview_highRes_300

Zaxcom ZFR-100

This small beltpack size unit records two audio channels plus SMPTE time code on to a mini-SD card. a 1GB card can hold up to 12 mono or 6 stereo hours. TC can be jammed directly in or received from a Zaxcom IFB-800 or 900 transmitter connected to any SMPTE source. The recording will start /stop with record run code from a camera, or will run continuously from the built-in generator.

After a recording has been made, files from the card are converted using a small software utility to create an editable WAV file with your selection of sampling rate, bit depth, and other options. A new ZTF file type compresses a long file by 20:1 for emailing.

Note that the same recorder (different control interface) that is used in the TRX-900 wireless mic transceiver. ZFR Web Page

ZFR800

Zaxcom ZFR-800

This is the recorder only version of the TRX-800 handheld transmitter. It has the same recording specs as the ZFR-100 above, and utilizes a modified Shure mic head for improved sound quality.  ZFR Web Page

microtrack_card_big

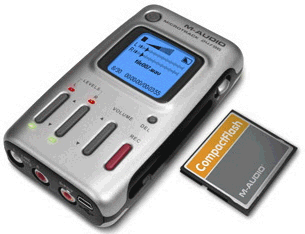

M-Audio Microtrack II

A pocket sized Compact Flash card stereo recorder with two balanced 1/4 inch Line and Mic (w/48V phantom) inputs plus a stereo miniplug mic input. RCA & S/PDIF outputs. USB port appears as a drive on any computer.

Independent L/R & Output level controls, each with level meters. Internal rechareable battery from AC supply or USB computer port. External battery boxes also available. Microtrack Web Page

h4

Zoom H4

The H4 Handy Recorder features two cardioid X/Y mics mounted on top and a long list of software options. It has combo 1/4”/ XLR line /mic inputs w/ 48V phantom, records to SD cards, and has 4 recording tracks. A USB port allows transferring files and allows the H4 to act as a real time USB /PC audio interface.

H4 Web Page

Deva_16 DevaMix12

Zaxcom Deva

The 8 channel Deva IV, the 10 track Deva V, 5.8, and the 16 track Deva 16, and the  are the third fourth & fifth generations of the most successful, reliable and mature audio mixer /recorder in the industry, used on more feature films than any other recorder. Deva records to both fault tolerant internal hard disk and to internal or external DVD-RAM drives. DEVA & Fusion are the most versatile production tools with  infinitely flexible multi-matrix mixers, 10 second pre-record, 24 bit/ 192 kHz recording with 123dB dynamic range AtoD converters, rich Metadata, and direct Avid & Protools editing compatibility and reference quality master time code generators.

Go to the DEVA Page

MIX-12 control & fader panel is available for the Deva V to ease complex mixing and control. Deva V Web Page

ATS_Zaxcom_Fusion

NEW! ZAXCOM FUSION
The Next Generation ENG /EFP Mixer /Recorder

Fusion is a high resolution audio mixer & recorder for reality television, surround recording and ENG work.
Light weight and power efficient, it replaces the multiple ENG mixers and portable recorders currently being used.
Built on the DEVA platform, the functions of mixing, recording and dynamics control are seamlessly integrated, providing features, functions and audio quality unattainable with discrete devices.

  • 8 analog + 8 digital inputs
        w/ sample rate conversion,
  • 8 analog + 8 digital outputs,
  • 10 pin Camera Connector
  • 8 mix busses with unlimited routing,
  • 4, 6, or 8 track recording
  • 2 Compact Flash Card Slots
  • Firewire Drive port
  • Time Code Generator
  • Optional Input EQ /Compressor
        /Expander Package
HD24_small

Alesis ADAT HD24XR, HD24 24-Track Hard Disk Recorder

Introducing the world's first 24-track, 24-bit/96kHz hard disk recorders designed to fit comfortably into any standard ADAT environment - and match ADAT's legendary performance and affordability.

With their patent-pending method of writing to the hard drive, HD24 and HD24XR are the first hard disk recorders built from the ground up exclusively for the purpose of recording music instead of data - resulting in remarkable stability and performance. And yet, thanks to their use of standard, low-cost IDE computer drives, the recording media costs no more than traditional ADAT tape on a per track basis.

Two hot-swappable media bays provide convenient access to the recording drives, and allow the user to backup data in just minutes. You can edit tracks internally or easily transfer to computer via built-in Ethernet. Optional Firewire 400 interface available. HD-24 Web Page
